Who should read this guide?

This guide is intended for the following audience:

  • WBS Gantt-Chart users who are project managers, involved in setting up and managing projects;

  • Jira users who have a full understanding of how to use Jira;

  • WBS Gantt-Chart users, or users with a good understanding of how to use WBS-Gantt Chart.

Information about Gantt

Creating a Gantt

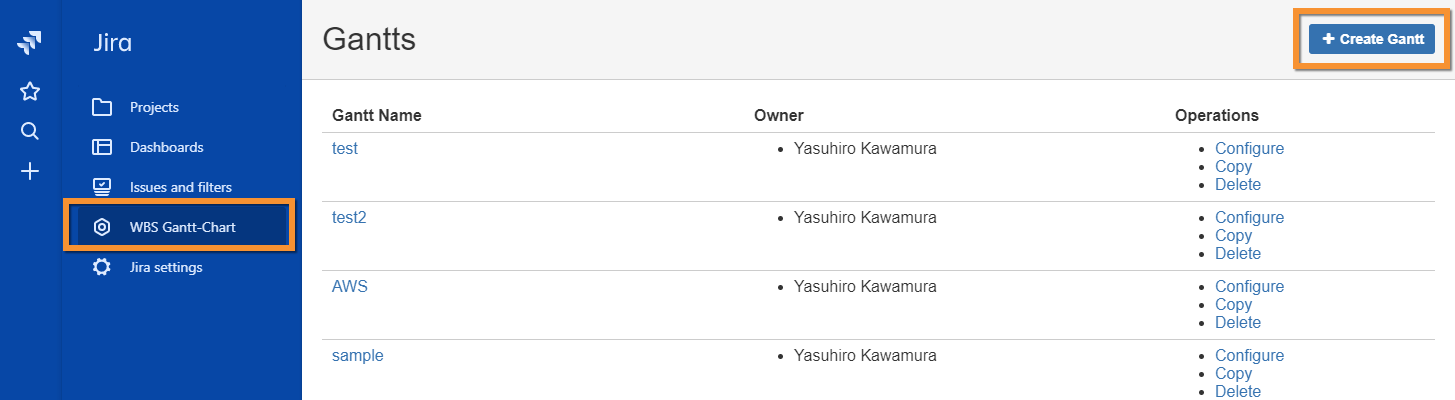

Click Create Gantt from the WBS Gantt-Chart menu. You will be redirected to the Gantt creation screen.

On the Gantt creation screen, you can create a Gantt from a Jira project or a Jira filter.

Creating a Gantt from a Jira project

Select one or more Jira projects from which to create the Gantt. An issue search filter to retrieve issues within the specified project will be created automatically.

A user who does not have permission to create Jira shared objects cannot create a Gantt from a project. This is because he cannot create an issue search filter.

Creating a Gantt from a filter

Select an existing Jira issue search filter and create a Gantt.

Confirming Gantt settings

Click Configure under Operations to the right of the Gantt list. You will be redirected to the Gantt settings screen. The details of the various settings are explained on the sub-page of this page.


Copying a Gantt

If you click Copy under Operations to the right of the Gantt list, a new Gantt with replicated settings is created. The logged-in user is added as a Gantt administrator.


Deleting a Gantt

Follow the steps below if you wish to delete a Gantt. Deletion is only possible if the logged in user is an administrator for the Gantt in question.

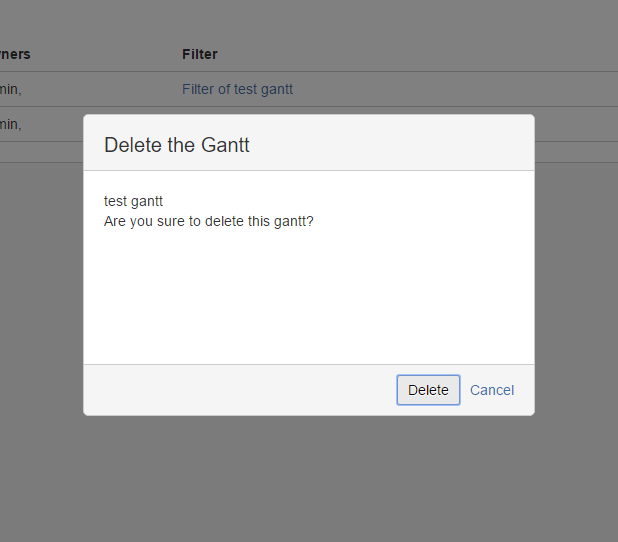

1. Click Delete under Operations to the right of the Gantt List.


2. When the delete confirmation dialog is displayed, click Delete.


Initial values for settings after creating a Gantt

The default values set by this add-on vendor Ricksoft are set as the initial values for configurations in Gantt.

More details

Please refer to the topics below.
