Gantt calendar settings
What is the holiday calendar?
Holidays are taken into consideration when project start and finish dates are set. All holidays are managed in WBS Gantt-Chart's holiday calendar.
Holiday calendar example
This is an example of the holiday calendar, showing two scenarios, A and B, as follows:
Conditions:
Scenario A
Yes / No | |
|---|---|
Irregular holidays | Yes |
1st regular holiday | - |
2nd regular holiday | - |
Holidays | No |
Scenario B
Yes / No | |
|---|---|
Irregular holidays | No |
1st regular holiday | Saturday |
2nd regular holiday | Sunday |
Holidays |
|
Note: is Monday.
Issue values
Value | |
|---|---|
Start date |
|
Finish date |
|
Duration | 2 days |
Operations
Drag-and-drop the Gantt bar so the issue starts on .
Results
Scenario A
This scenario does not have holidays, so the issue values are as follows:
Value | |
|---|---|
Start date |
|
Finish date |
|
Duration | 2 days |
Scenario B
In this scenario, , , and will not be counted since they are defined as holidays.
Value | |
|---|---|
Start date |
|
Finish date |
|
Duration | 2 days |
Confirm holiday calendar settings

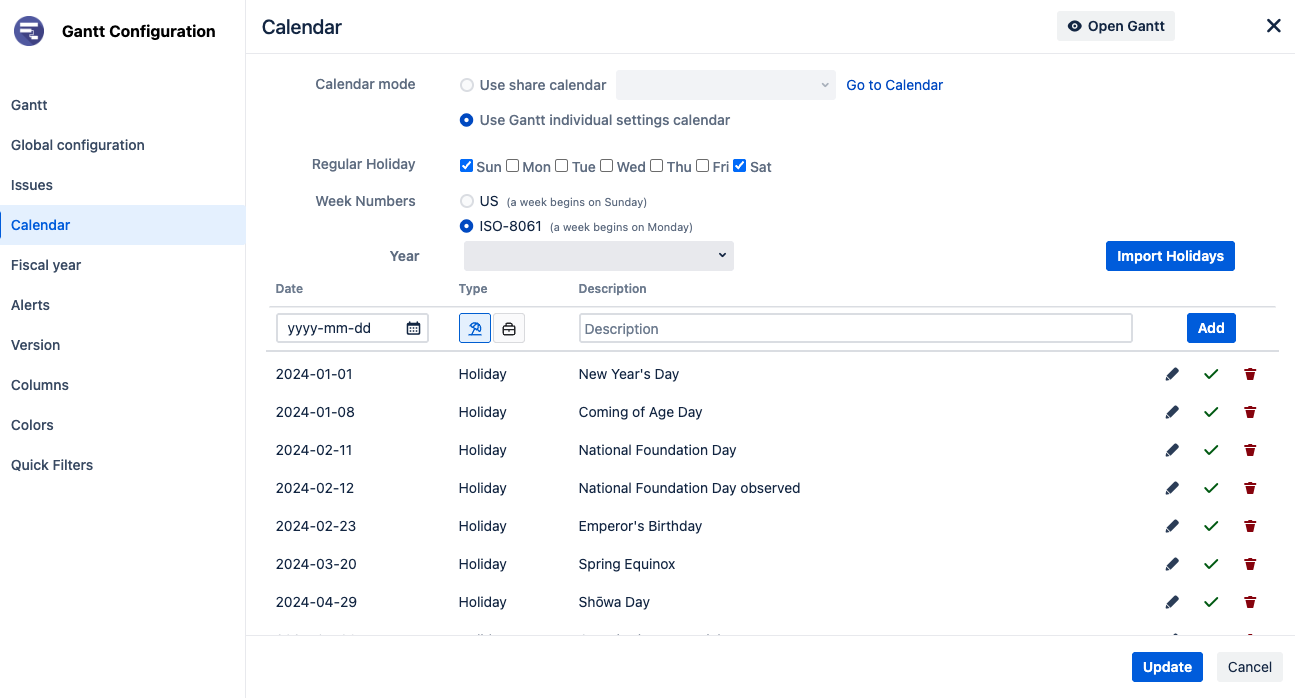

Click Calendars on the Gantt configuration screen.
Holiday calendar items

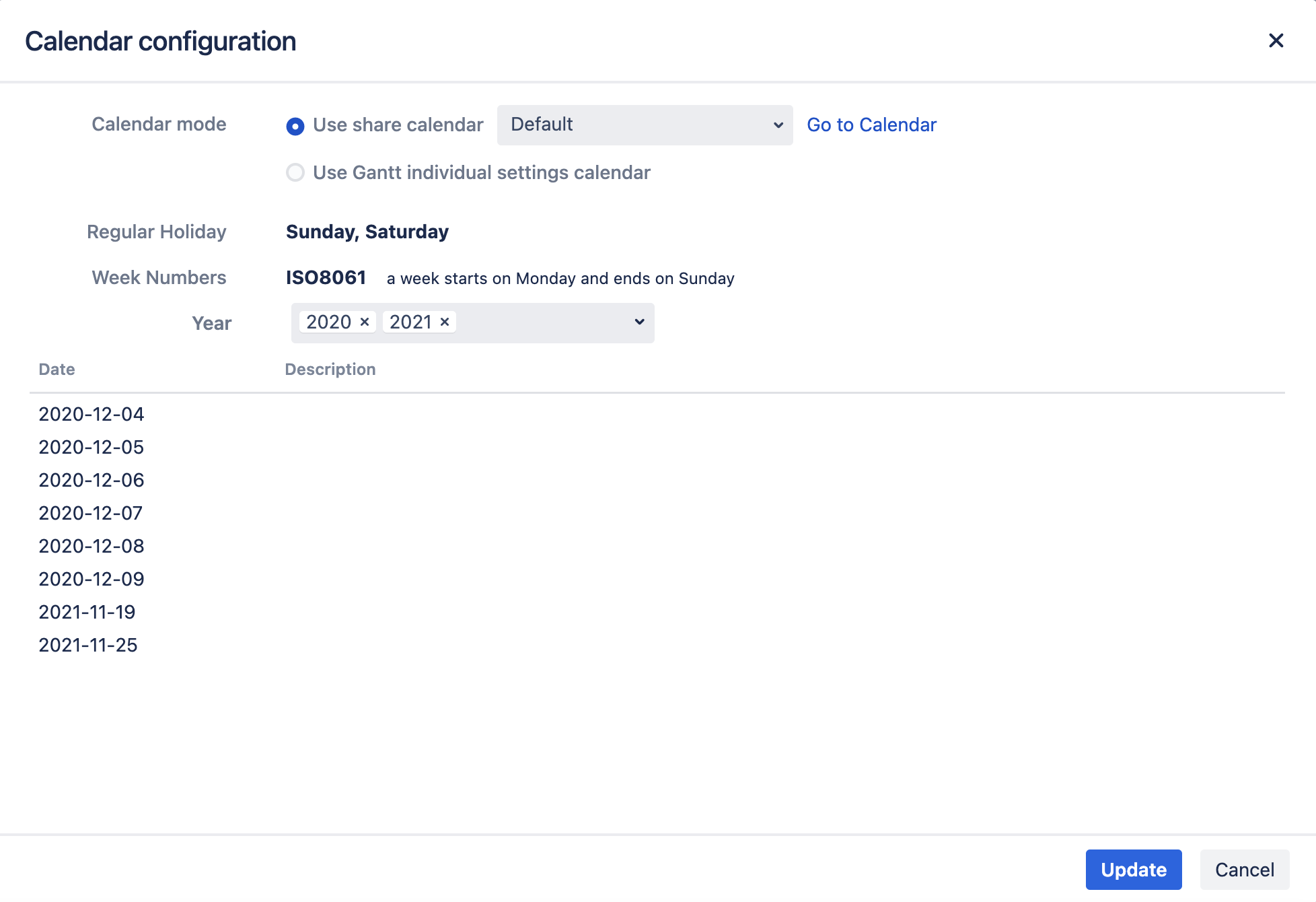

Use Share Calendar
When enabled, use the global shared calendar configured by the Jira administrator.
Week Numbers
This item sets the week number and the starting day of the week.
If US is selected, the week in the Gantt chart is displayed starting on Sunday, and the week number is also displayed in US style.
If ISO-8601 is selected, the week in the Gantt chart is displayed starting on Monday, and the week number is also displayed in the ISO-8601 style.
Irregular holidays
You do not set any specific days of the week as holidays.
1st holiday
The first regular holiday you specify. If you select Yes for irregular holidays, this would not be shown.
2nd holiday
The second regular holiday you specify. If you select Yes for irregular holidays, this would not be shown.
Holidays
This is a list of the dates you have registered as holidays.

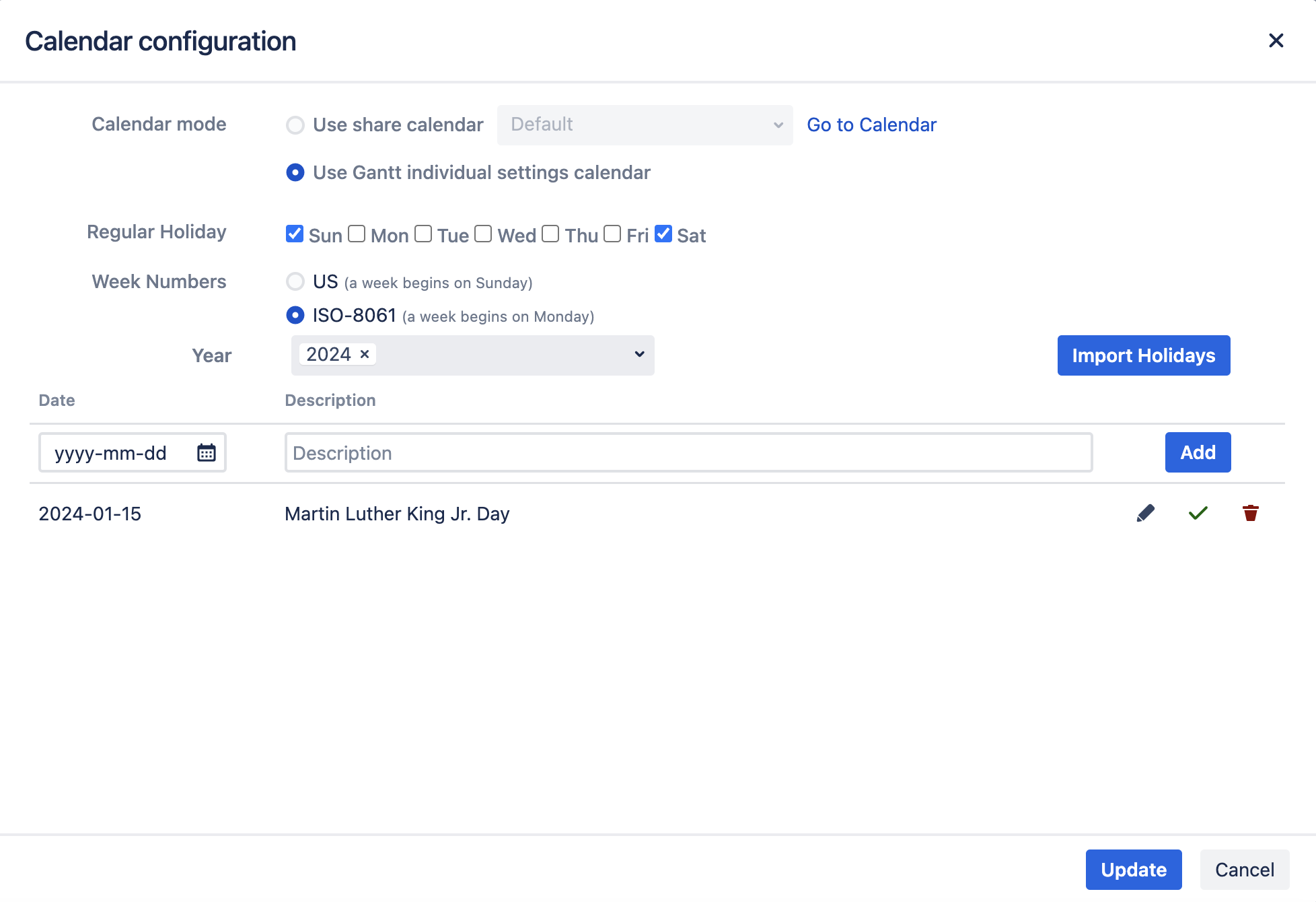

Update holiday calendar
Click Edit on the upper right-hand side of the holiday calendar configuration screen.
Choose Use Share Calendar. If enabled, the other settings cannot be changed.
Choose Irregular holidays.
Choose 1st holiday and 2nd holiday if you do not turn on Irregular holidays.
Enter specific holidays using YYYY-MM-DD format. Enter one date per line.
Click Update.
Additional Help
If you have any questions please feel free to ask a member of the Atlassian community!
Add the tag "addon-jp.ricksoft.plugins.wbsgantt-for-jira" when you ask a question.
