Global Issue settings

Access to system settings

Select Issue from the setting screen for system administrators.

Click here to expand...
Global settings by system administrators

Various different settings, which we call global settings, can be viewed on the WBS Gantt-Chart administration screen. To access the administration screen follow these steps:

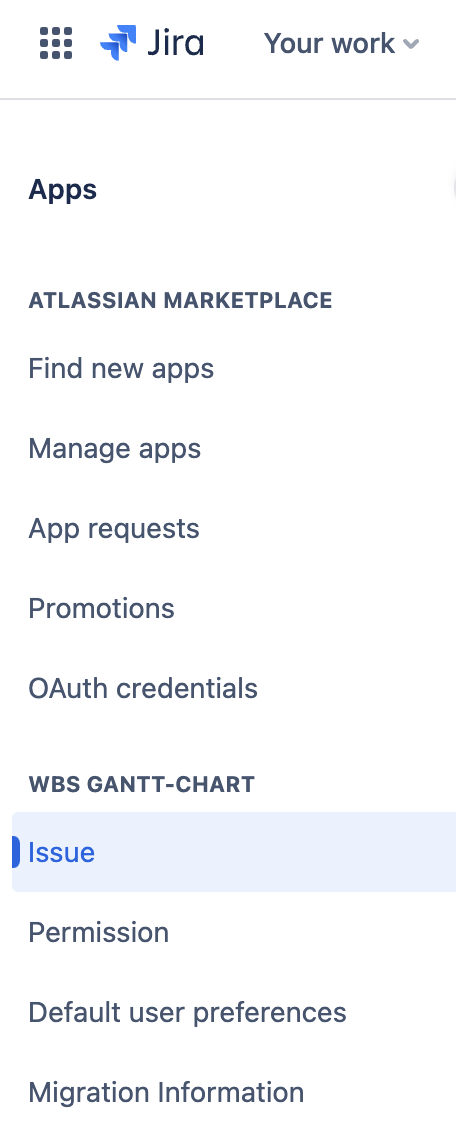

  1. Select Jira settings → Apps from the cog icon on the top-right corner.

  2. Select the settings you would like to view from the WBS Gantt-Chart section on the side menu.

To view settings, one of the following permissions is needed:

  • Jira Administrator

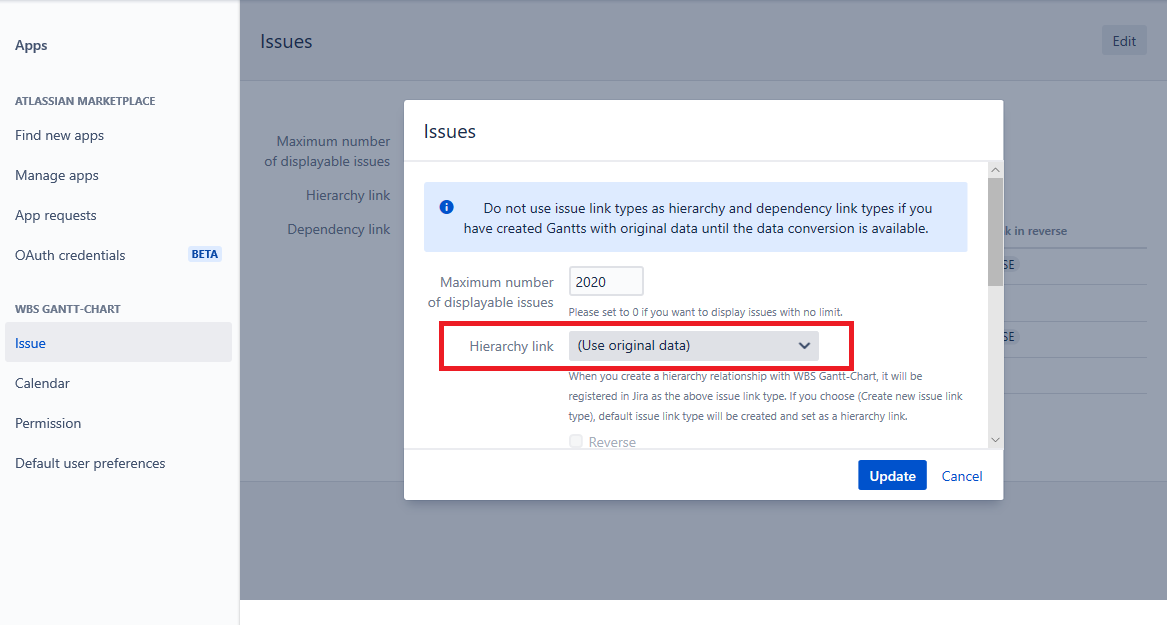

How to change the link settings between issues

Since version 1.1.15-AC, Jira issue links can be used to create hierarchy and dependency relationships.

If you select "(Use original data)", hierarchy and dependency relationships are saved as unique data for the App, just as they were up to version 1.1.14-AC.

When you update by selecting "(Create new issue link type)", a new issue link type for WBS Gantt-Chart for Jira will be created and the issue link type will be selected.

How to change the maximum number of displayable issues

If the number of issues displayed is too large, WBS Gantt-Chart may not function properly. You should set a number for the maximum number of issues to be displayed.

Update the maximum number of displayable issues in the field and click Save. Enter '0' for an unlimited number.


How to change the hierarchy issue link type

Select the issue link type to use for the hierarchy.

Reverse

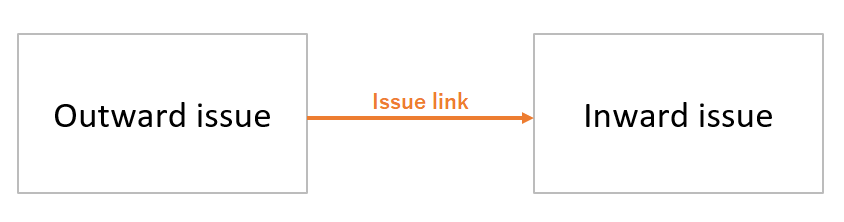

Set which of the two issues linked by the issue link will be treated as the parent and which as the child.



Parent

Child

Default

Outward issue

Inward issue

Reverse

Inward issue

Outward issue

How to change the dependency issue link type

Select the issue link type to use for the dependency.

View link in reverse

Set which of the two issues linked by the issue link will be treated as the predecessor and which as the successor.


Predecessor

Successor

Default

Outward issue

Inward issue

Reverse

Inward issue

Outward issue

How to change the gantt data field

Select whether you want to use the App's own data or Jira fields.

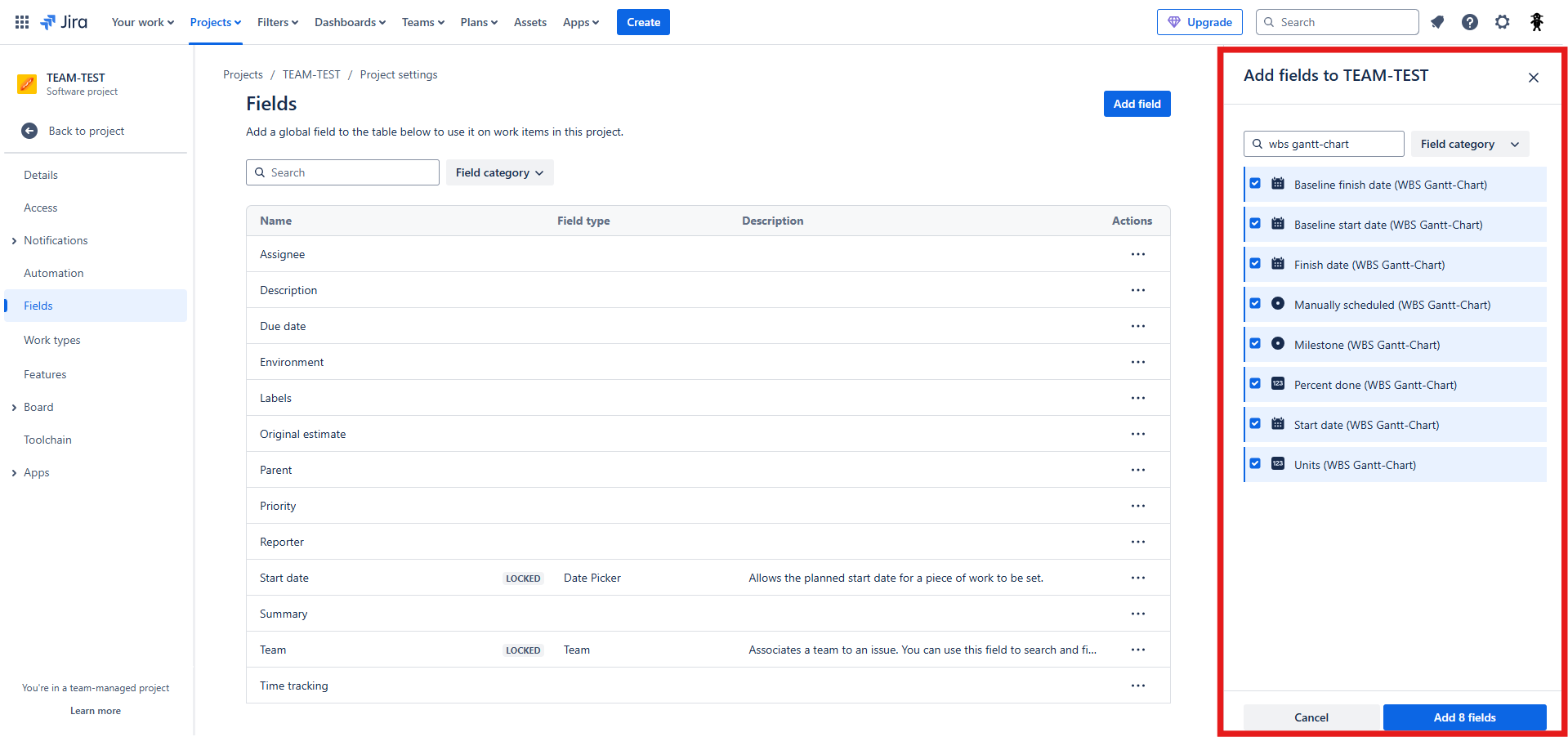

If you are using Jira field, please set the permissions as follows.

  • You have to grant WBS Gantt-Chart viewing, editing, and linking issues permission. To achieve this, please grant the following to "atlassian-addons-project-access" project role.

    • "Browse Projects", "Edit Issues", and "Link Issues" permission in every permission scheme.

    • Every issue level in every issue security scheme.

Field select

Select the fields that you want to use as start date, etc. in WBS Gantt-Chart for Jira.

Item

Field types for selectable fields

Description

Start date

Date Picker

The field to store the start date of the issue.

Finish date

Date Picker

The field to store the finish date of the issue.

Baseline start date

Date Picker

This field stores the start date of the issue at the time the plan was created.
In the WBS Gantt-Chart screen, it is displayed as a gray gantt bar.

Baseline finish date

Date Picker

This field stores the finish date of the issue at the time the plan was created.
In the WBS Gantt-Chart screen, it is displayed as a gray gantt bar.

Percent done

Number Field

The field to store the progress of the issue.

Units

Number Field

This is a field that stores the percentage of work that the person in charge of the issue will do during the work period of the issue.

Manually scheduled

Radio Buttons

This is the field where you store the setting for whether or not to automatically change the schedule for the issue in conjunction with changes to the schedule of issues that have a hierarchy or dependency with that issue.

Milestone

Radio Buttons

This is the field where you store the setting for whether the issue should be treated as a milestone of zero days duration.

If you select “(create new custom field)” and update, WBS Gantt-Chart for Jira will automatically create a new custom field.

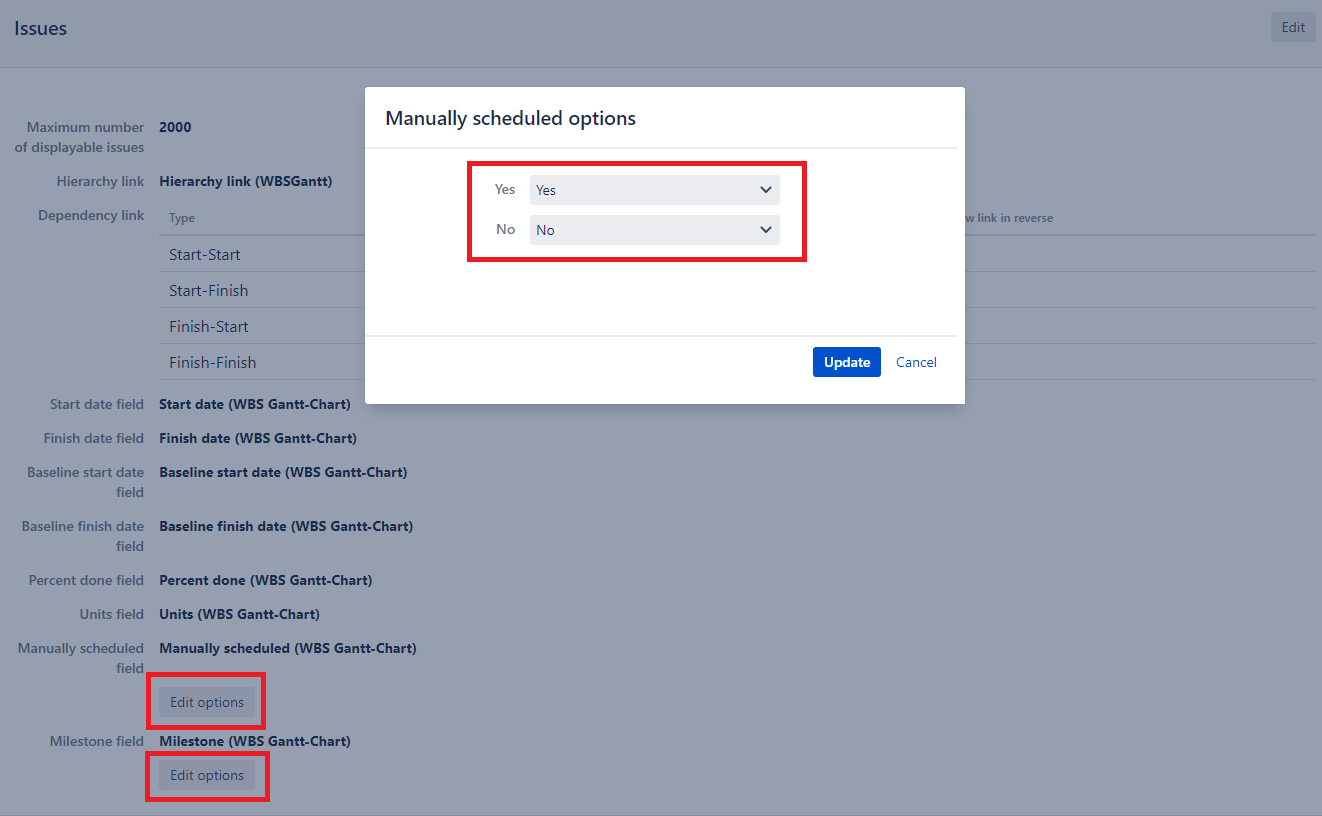

Tying to option

You can use any radio button field for Manually scheduled and Milestone.
Set which of the options in the radio button fields will be used as the "Yes" or "No" value in WBS Gantt-Chart for Jira.

Convert app's own data to Jira object

You can convert the dependencies, hierarchies, start dates, etc. that you keep as App's own data into Jira issue links and custom fields.

For more details, please see the following page.

How to convert app's own data into a Jira issue link / Jira field

This feature can only be used once, and you will not be able to use the app's own data after executing the conversion.
