How to migrate WBS Gantt-Chart from Server / Data Center to Cloud

Summary

This is manual how to migrate WBS Gantt-Chart for Jira Server/Data Center to WBS Gantt-Chart for Jira Cloud using Jira Cloud Migration Assistant (JCMA).

Prerequisites for Migration

To perform the migration, WBS Gantt-Chart for Jira Server/Data Center version must be 9.14.0 or higher.
If you are using 9.13.x or lower, please update the app first.

Manual

1. Check and Normalize

Server / Data Center Side

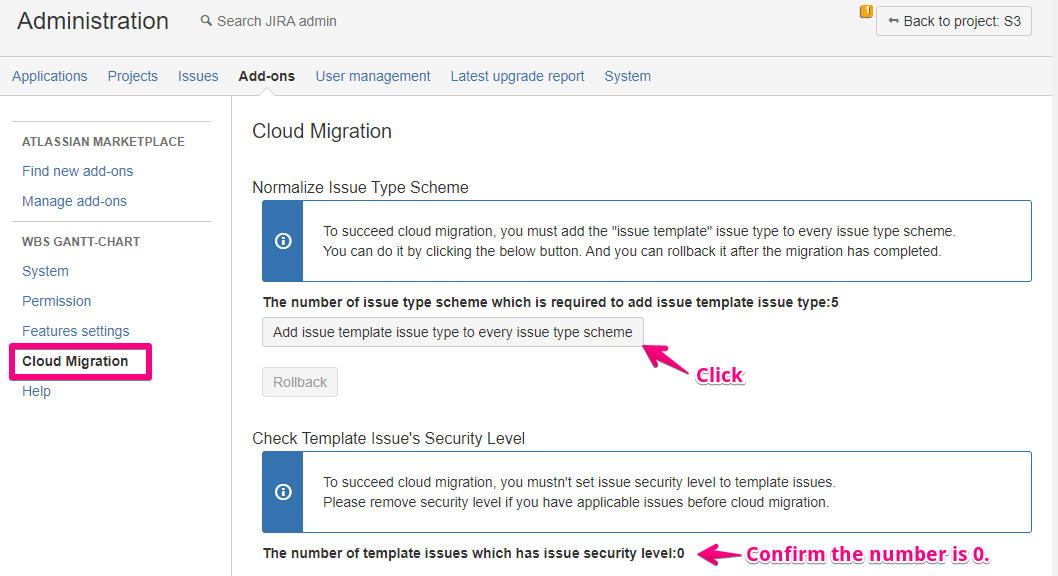

  1. Go to Add-ons admin page and go to Cloud Migration page under “WBS GANTT-CHART” section.

  2. Add issue template issue type to every issue type scheme.

  3. If there are template issues which has issue security level, Please clear issue security level from the issue.



Cloud Side

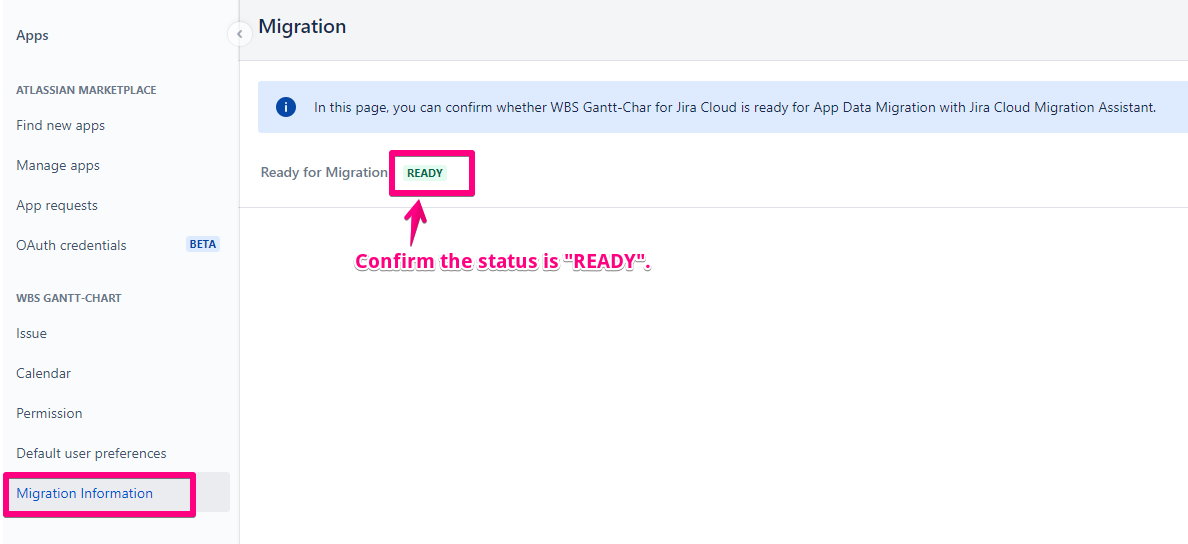

  1. Go to App admin page and go to Migration Information page.

  2. Confirm to be shown “READY” status.



2. Do migration with JCMA

Please follow the Atlassian documentation.

https://confluence.atlassian.com/cloud/use-the-jira-cloud-migration-assistant-to-migrate-from-server-to-cloud-993925215.html


3. Configure WBS Gantt-Chart for Jira Cloud

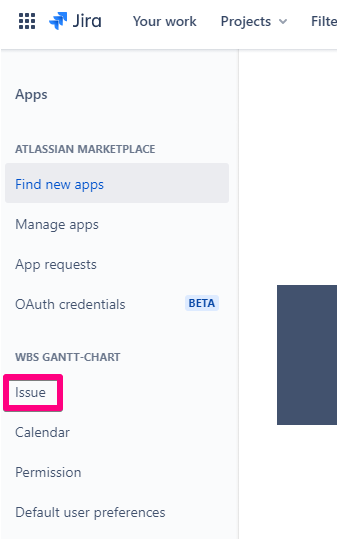

  1. Go to App admin page and go to Issue setting page.

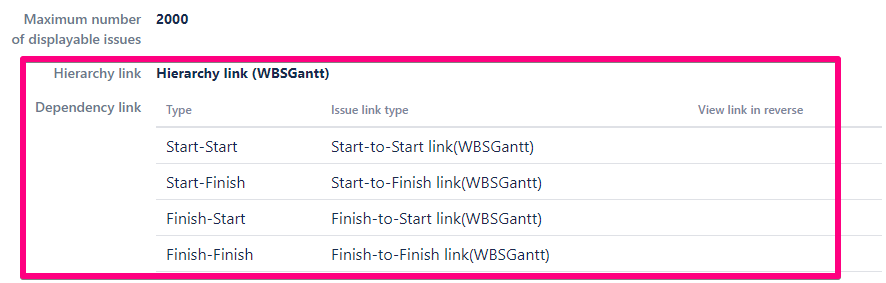

  2. Configure link setting to migrated ones.

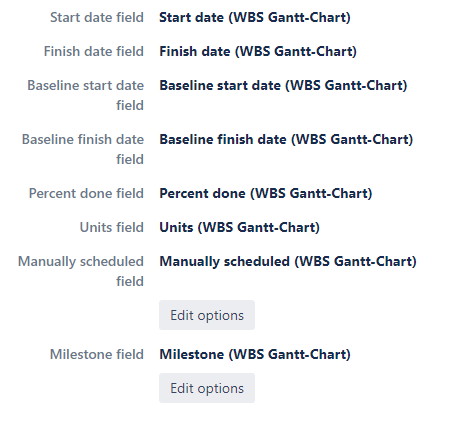

  3. Configure field setting.


Specification

What data is migrated

Data

Note

WBS Code

Limitation

On WBS Gantt-Chart for Jira server version WBS code of a issue can be set each WBS (Gantt WBS, Project WBS, Filter WBS). On the other hand, WBS code of a issue have to be unique on WBS Gantt-Chart for Jira cloud version.

Therefore, If the same issue has WBS code on several WBS (e.g. Issue X’s WBS codes on Gantt A , on Gantt B and on Project C are different), used WBS Code is following priority.

Newer Gantt > Older Gantt > Project > Newer Filter > Older Fileter

Template

Limitation

Only fields of editable standard columns, successors and predecessors are migrated.

Editable Standard Columns

  • WBS code

  • Name

  • Assignee

  • Units

  • Priority

  • Start Date

  • Finish Date

  • Manual Mode

  • Due date


Differences in specifications

On WBS Gantt-Chart for Jira server version, templates are issues.
On the other hand, on WBS Gantt-Chart for Jira cloud version, templates are app own data.
Thus migrated issues for template are meaningless. So they are deleted automatically in migration process. And template issue type also.

Gantt-Chart data such as start date

Migrate data as a Jira field.

Hierarchy and Dependency

Migrate data as a Jira issue link.

Gantt

Migration of gantt data to the cloud is only possible with WBS Gantt-Chart for jira Data Center 9.16.0 or later.
Due to differences in functionality between the Data Center/Server and Cloud versions, some data will not be migrated.
For details, please check "Gantt Data Migration" below.

Jira Cloud Migration Assistant(JCMA) executes the migration to the Cloud without updating the project ID included in the filter's JQL.
As a result, the migrated Gantt chart may not display issues correctly.

Therefore, you need to change the project ID included in the JQL to the project key before migrating to the Cloud, or update the JQL after migrating to the Cloud.

Since this is an issue with JCMA, you will need to watch and vote for the following Atlassian issue and wait for an improvement:
https://jira.atlassian.com/browse/MIG-907
Gantt Data Migration

Data Center / Server item name

Migratable

Note

General




  • Gantt name

check mark



  • Administrative users

check mark


  • Administrative groups

check mark


  • Operation by non-administrators

check mark



Issue view




  • Issue display mode

cross mark

The Cloud version does not have this feature.

  • Issue view configuration

cross mark

In the Cloud version this exists only in the global settings.
And it is not possible to change the setting for each issue type.

  • Initial planned date

check mark



  • Issue template share project

check mark


  • Restrictions on using drag-and-drop

cross mark

The Cloud version does not have this feature.

Version




  • Version management on WBS

check mark



  • Version to display

check mark



  • Option

check mark


  • Relationship between versions and issues

cross mark

The Cloud version does not have this feature.

  • Version manual mode

check mark



Columns




  • Standard Columns

cross mark

The Cloud version does not have this feature.

  • Extra Columns

check mark


View



  • Hierarchy link

cross mark

In the Cloud version this exists only in the global settings.

  • Dependency link

cross mark

In the Cloud version this exists only in the global settings.

  • Warning alert criteria

cross mark

The Cloud version does not have this feature.

  • Progress of status

cross mark

The Cloud version does not have this feature.

  • Epic

cross mark

The Cloud version does not have this feature.

  • Fiscal year start month

check mark


Color




  • Children Bar

check mark


  • Parents Bar

check mark


  • Baseline Bar

check mark


  • Version Bar

cross mark

The Cloud version does not have this feature.

Calendar




  • Regular Holiday

check mark



  • General holidays

check mark



What data is not migrated

Data

Note

Lag/Lead

Lag/Lead data migration is not supported due to a bug in JCMA that does not correctly convert the issue link IDs.
We are planning to support migration as soon as that bug is resolved.

System Setting

WBS Gantt-Chart for Jira system settings is not migrated. Thus please configure it manually.
They are under “WBS GANTT-CHART” section in Apps admin setting page.

User preference
