Create, edit, and delete dependency

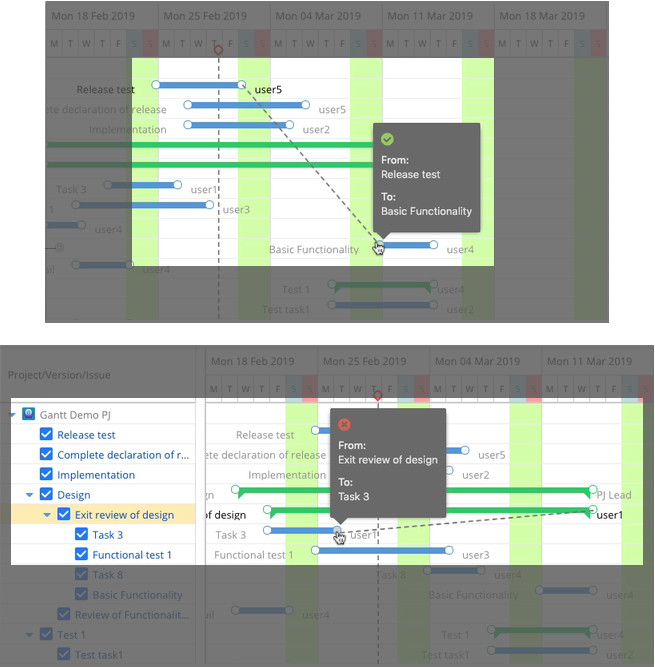

Creating a dependency
Dragging the edge of an issue to the edge of another issue creates a dependency between the two issues.
Move the cursor on the Gantt bar of a predecessor issue.
Drag the connector.
Drop on the connector of the successor issue Gantt bar.
A dependency cannot be created if issues have a parent-child relationship, or if the two issues are identical. Also, if a connector is not displayed, the settings do not allow to create that kind of dependency.
![](../__attachments/2930802695/dependency%20creation.png?inst-v=e7cfb899-2364-4b8c-bb82-56cd5c2b91e4)

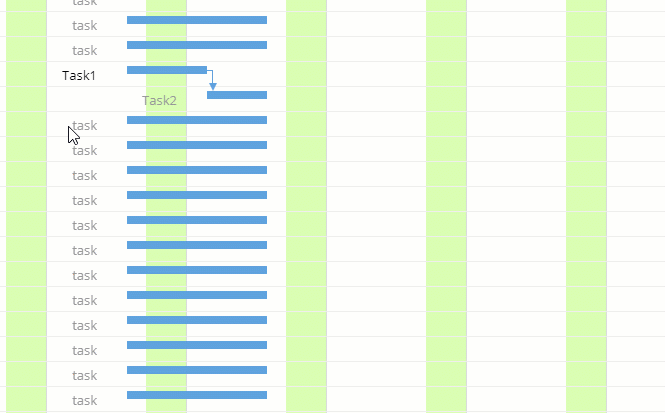

Set lag or lead time
When you mouse over the dependency line, "Details" will be displayed.
Click "Details" to display the dialog box for setting the lag/lead time, and enter the desired value.
![](../__attachments/2930802695/lag_lead.gif?inst-v=e7cfb899-2364-4b8c-bb82-56cd5c2b91e4)
Deleting a dependency
Delete from the contextual menu of the issue.
Right-click on the issue.
Delete dependency ... ⇒ Select the dependency you want to delete
