Accessing column settings

Navigate to the Cog icon (at the top-right corner) > Gantt configuration > Column (on the left).

Standard columns

You can set the width and display for standard columns in WBS Gantt-Chart by following these steps.

  1. Click Edit on the right-hand side of the screen.

  2. Change the width and display setting of each column in the displayed dialog.

  3. Click Update.

The list of column types below shows which settings (width and display) can be changed.

Column

Change width

Change display

Alert

(tick)

(tick)

Project / Version / Issue

(tick)

(error)

Key

(tick)

(tick)

Assignee

(tick)

(tick)

Units

(tick)

(tick)

Priority

(tick)

(tick)

Status

(tick)

(tick)

Start Date

(tick)

(tick)

Finish Date

(tick)

(tick)

Duration

(tick)

(tick)

Manual Mode

(error)

(tick)

Percent Done

(tick)

(tick)

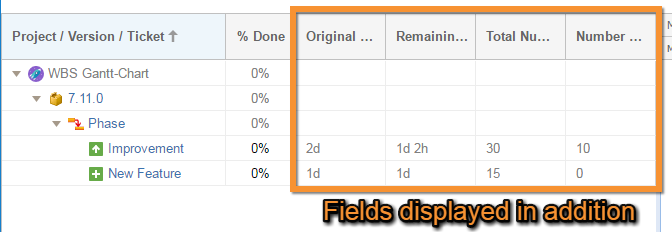

Extra columns

System fields and custom fields that are not displayed in WBS by default, such as Created or Resolution can be displayed and edited as required. Added fields are shown to the right of % Done.

Available additional columns

System fields

The available system fields are shown below:

Field

Edit

Reporter

(tick)

Affects Version/s

(tick)

Fix Version/s

(tick)

Created

(error)

Updated

(error)

Due Date

(tick)

Component/s

(tick)

Security Level

(error)

Labels

(error)

Original Estimate

(tick)

Time Spent

(error)

Remaining Estimate

(tick)

Resolution

(error)

Project

(error)

Environment

(error)

Votes

(error)

Watchers

(error)

Description

(error)

Work Ratio

(error)


Custom fields

All custom fields can be added. The field types which are automatically recognized by WBS Gantt-Chart (displayed and edited correctly) are shown below:

Field Type

Edit

Date Picker

(tick)

Date Time Picker

(tick)

Number Field

(tick)

Text Field (single line)

(tick)

Text Field (multi-line)

(error)

URL Field

(tick)

Text Field (read only)

(error)

Version Picker (single version)

(tick)

Version Picker (multiple versions)

(tick)

User Picker (single user)

(tick)

User Picker (multiple users)

(tick)

Sprint (Jira Software)

(error)

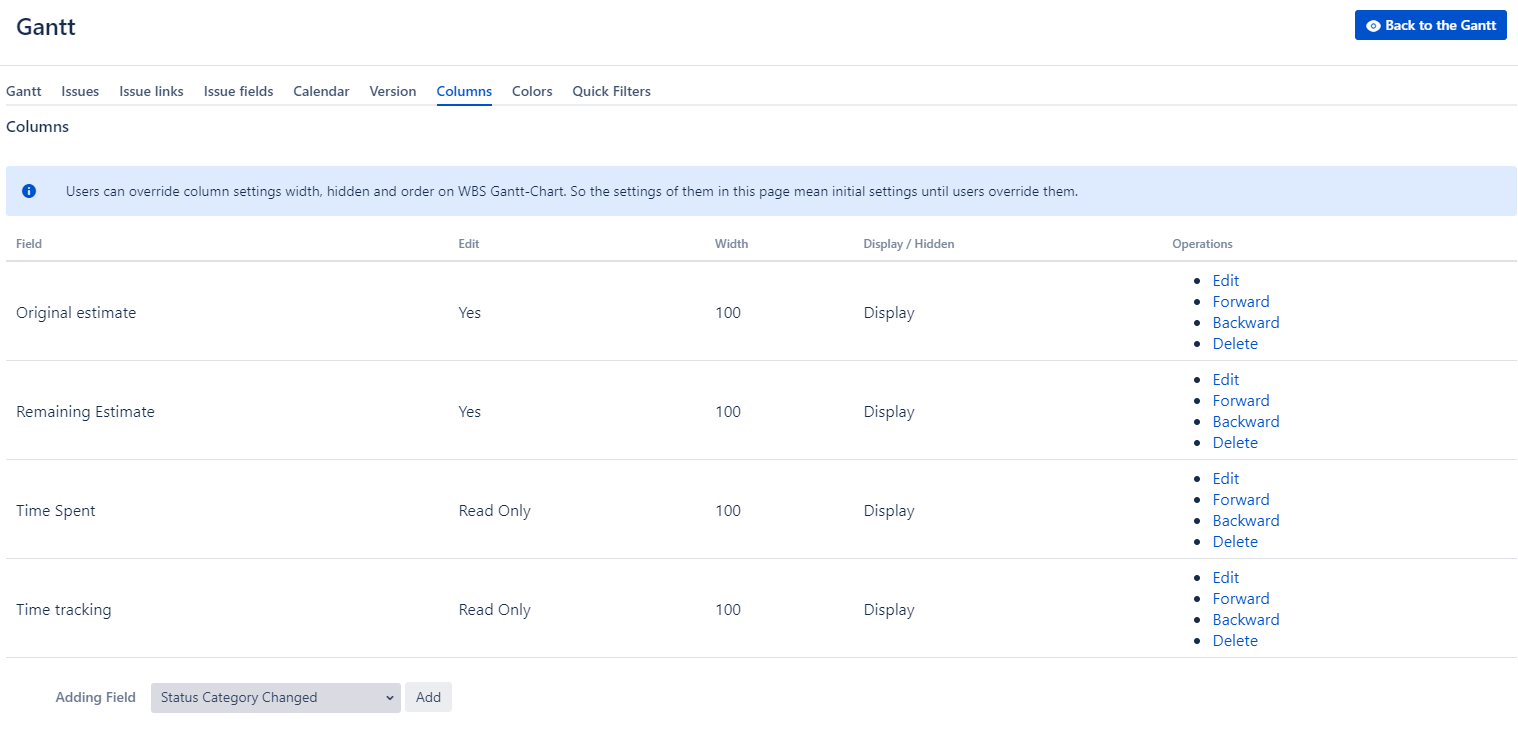

Adding a column to display

To add a column to display:

  1. Select Column in the WBS Gantt-Chart add-on section (WBS Gantt-Chart Column Configuration).

  2. Select the field to add from the Adding Field dropdown menu.

  3. Click Add

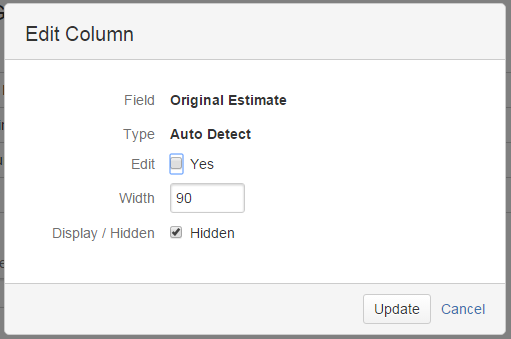

Editing columns

To edit a column:

  1. Click Edit in the Operations column.

  2. Edit the field.

  3. Click Update.


The descriptions for each field are shown below.

Field

Description

Field

The column field

Edit

Setting as Yes enables field to be edited on WBS
Read-only fields cannot be set to Yes

Width Display

Default column width

Display/Hidden

Display/Hidden - default setting

Width and Display/Hidden are default settings. If a setting is edited, the updated setting is prioritized as the standard field.

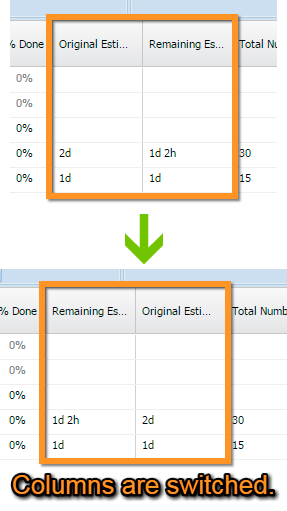

Changing column display order

Click Forward or Backward on the field row to change the order in which columns are displayed. The WBS display shows the columns in the order of the field list.

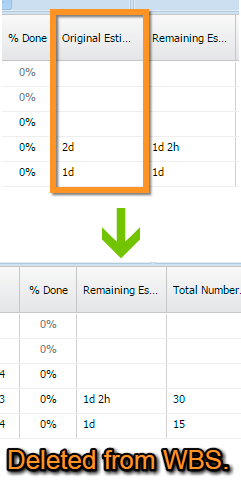

Deleting a column from the WBS display

Click Delete on the row to be deleted. The field will be deleted and also hidden in the WBS display.

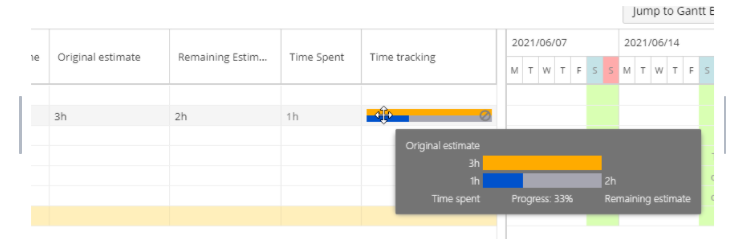

Time tracking column

If you add the "Time tracking" column to the additional column, you can see the graphical time tracking in the cells on the WBS.
