Gantt Chart Planner for Confluence Cloud

Conflicts warning when multiple user editing the Gantt chart

You might need to coordinate updates with multiple collaborators on the Gantt chart. It’s important to note that every time a user saves a new version, it will overwrite the previous versions.

You’ll get notified when another user edits the Gantt chart simultaneously.

See active user(s) in view mode

The app will display active users on the toolbar:

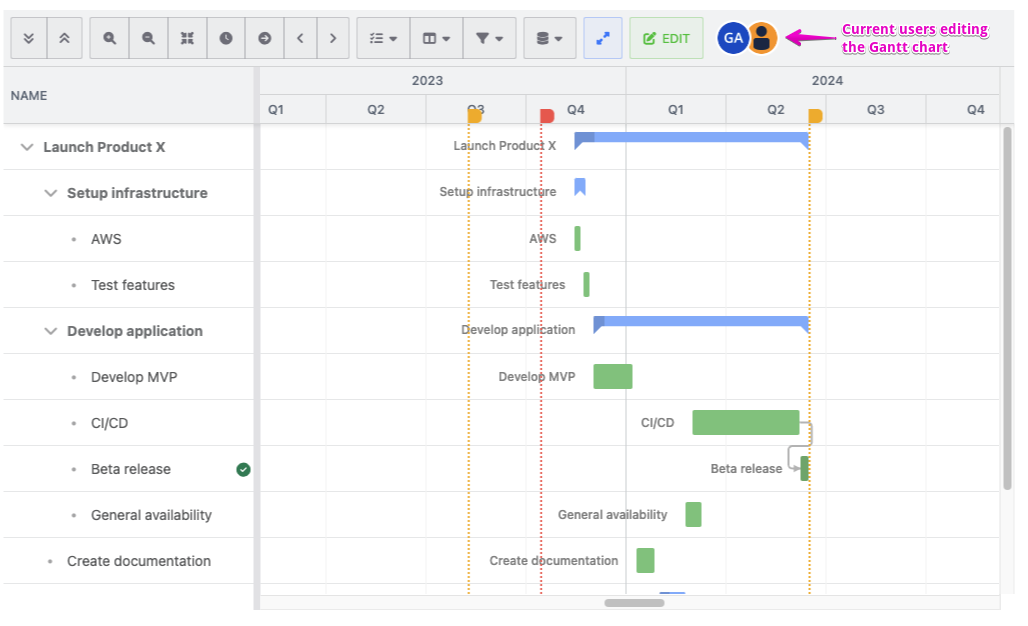

View mode - Editing Gantt Charts - Test2 - Confluence 2023-10-13 15-23-22.png


In case you open the Gantt editor while there’s another user working on it, you’ll see the warning as below:

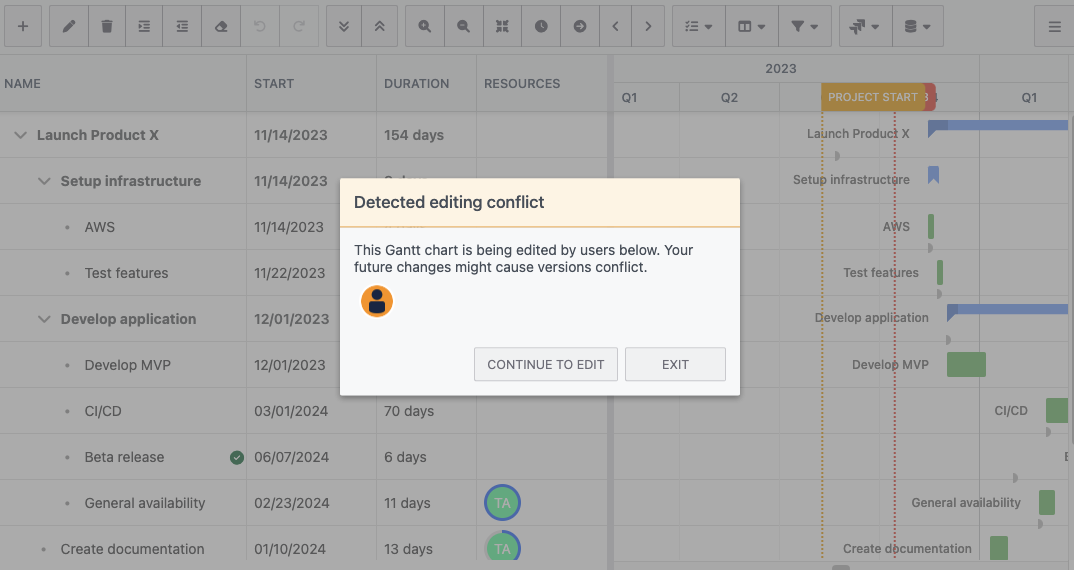

Warning dialog -  Editing Gantt Charts - Test2 - Confluence 2023-10-13 15-25-50.png
  • If you choose to continue editing the Gantt, the app will display all active users

  • Select Exit to close the editor so you can avoid creating conflicting versions

See active user(s) in edit mode

When multiple users edit the Gantt chart simultaneously, the app will keep the notification on so you can see the current list of collaborators:

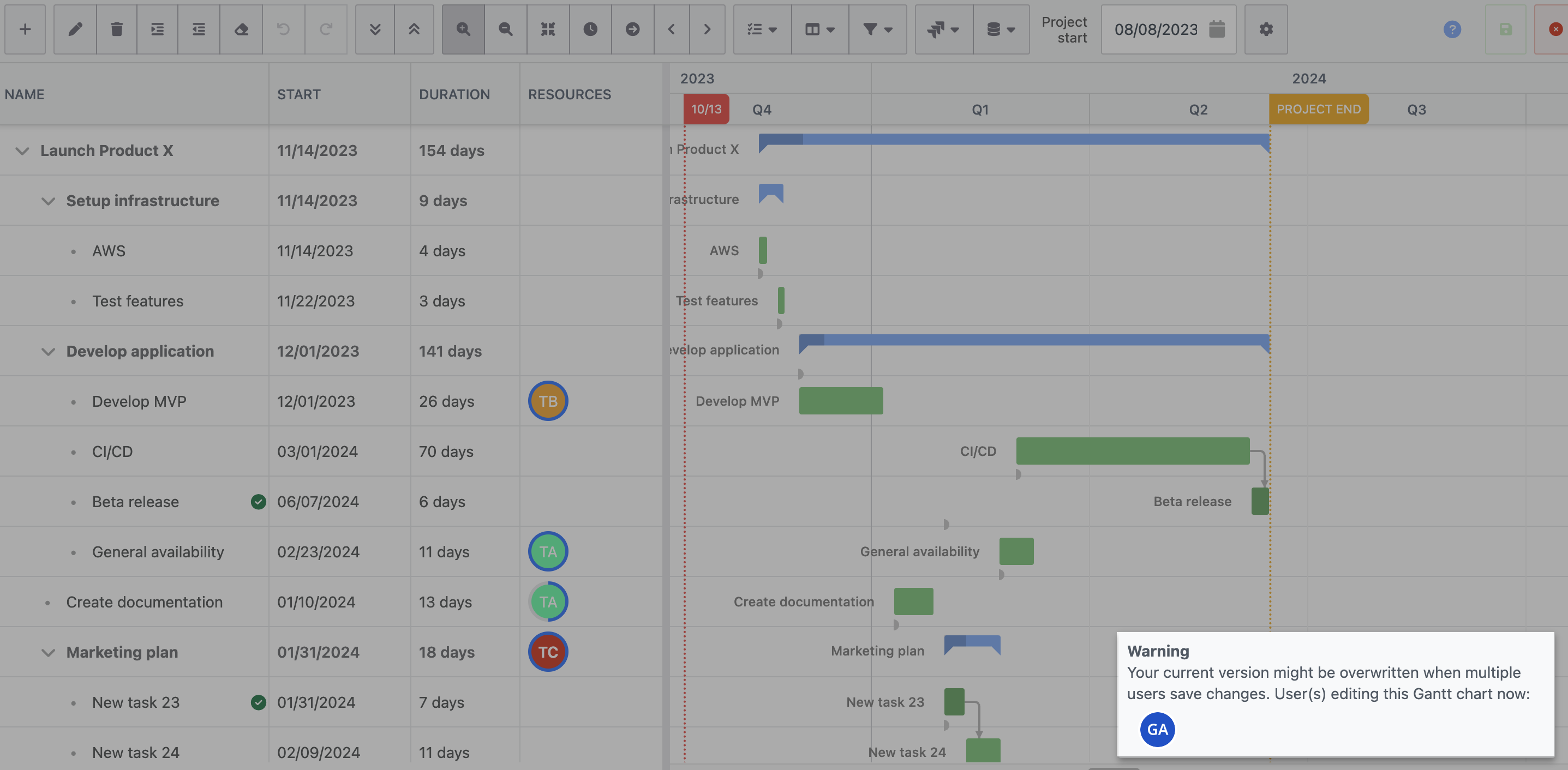

Editing conflict warning.png


Help collaborators understand the changes from your Gantt chart version

To make sure your changes are well understood and maintained by other collaborators, you can provide more context when saving the Gantt version:

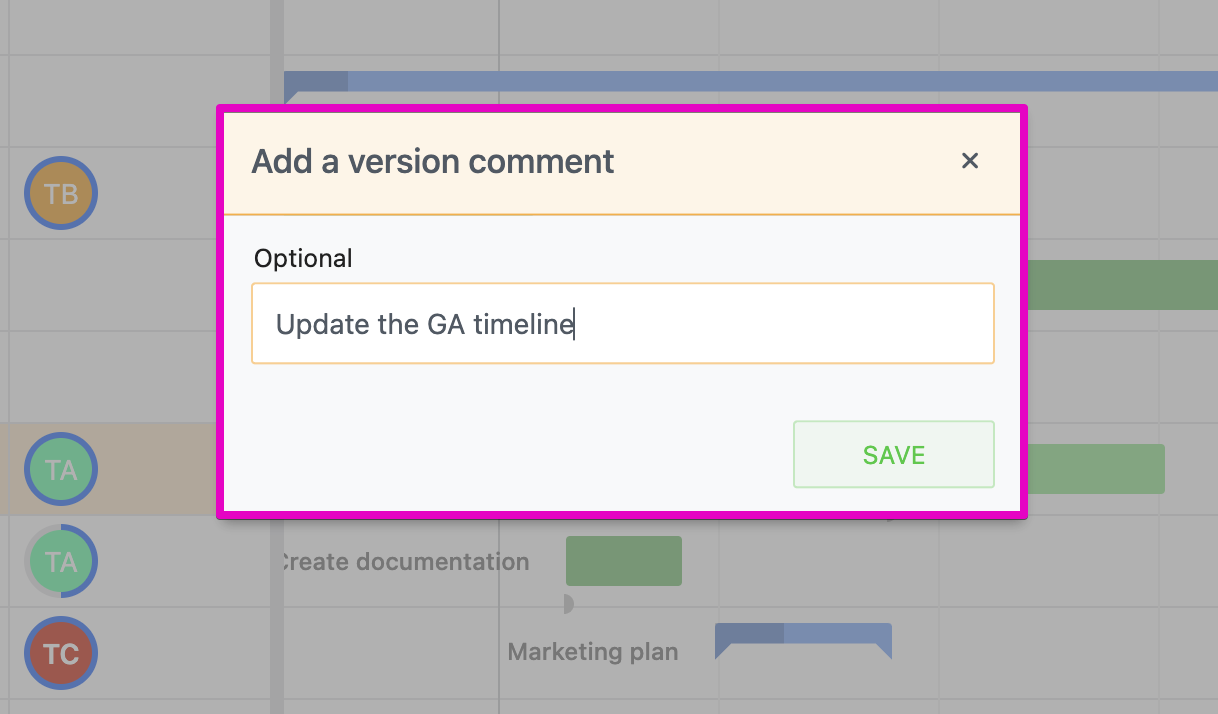

Version comment.png


The version comment will be stored in the Gantt version history as well as in the Attachment list:

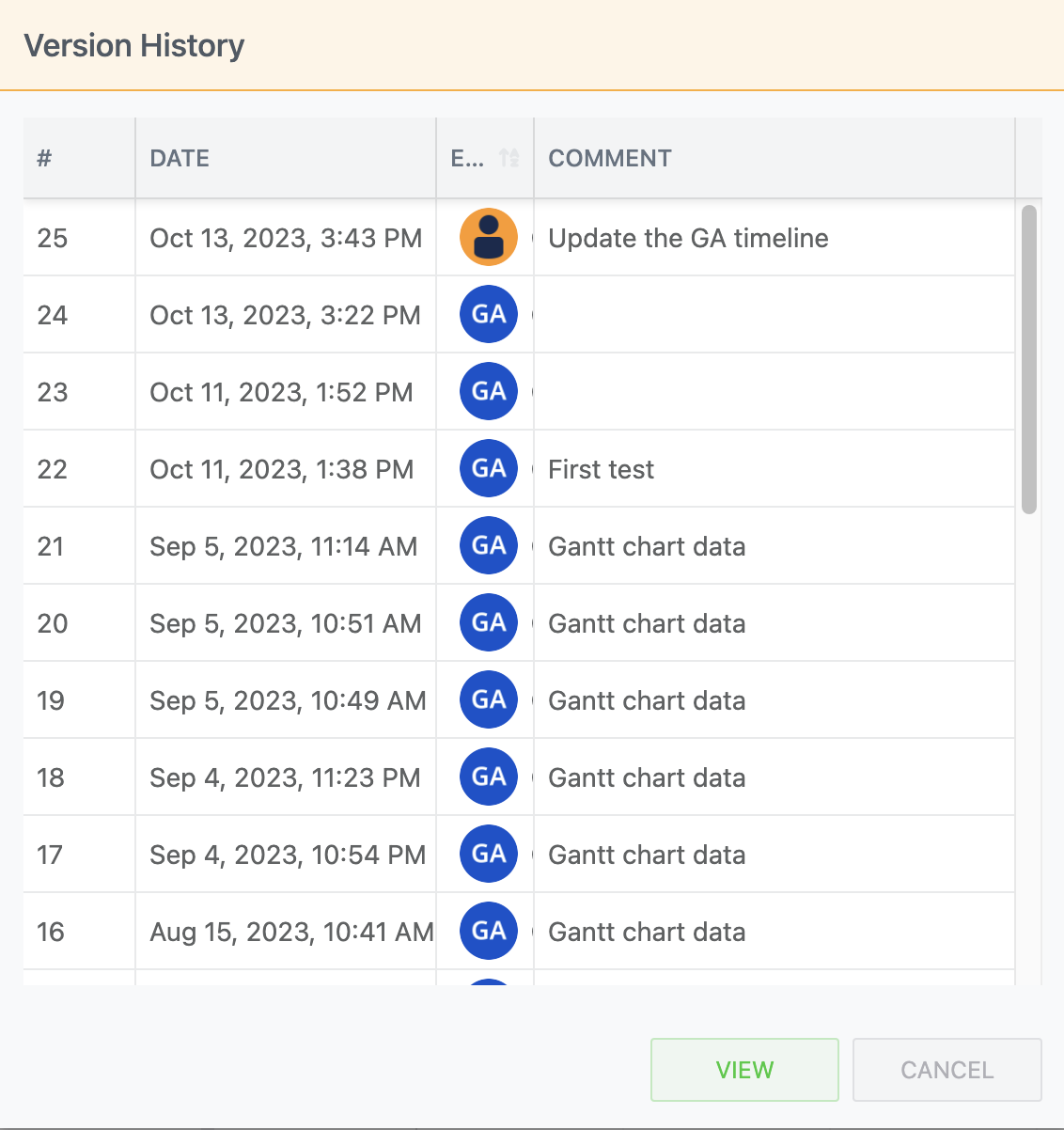

Version history.png
Gantt chart Version History

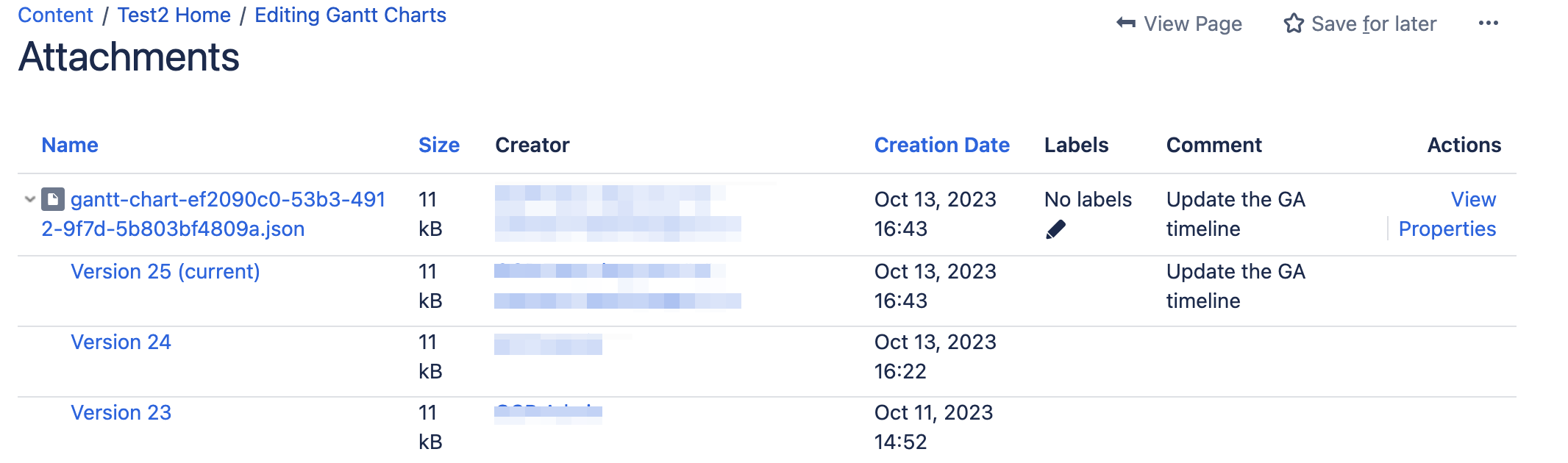

Files list.png
See version comment from the Attachments list
