Define custom columns

Besides the default columns, you can define custom columns as well to accommodate unique project requirements.

For example, you can monitor project budget by adding a Cost column to your Gantt chart:

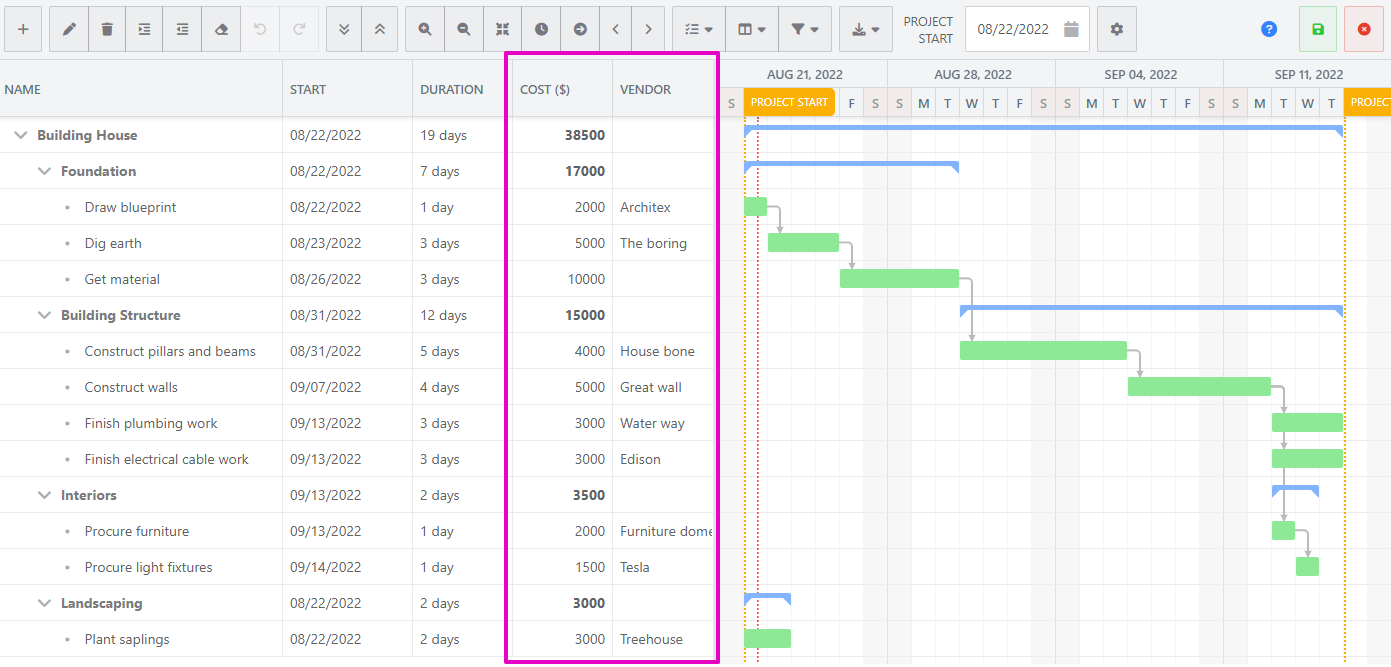

Custom cost column.png

How to define custom columns

  1. Open Gantt chart editor

  2. Go to the configuration panel

  3. Switch to Columns tab

  4. Press add button

  5. Input column name and column type, then hit Create

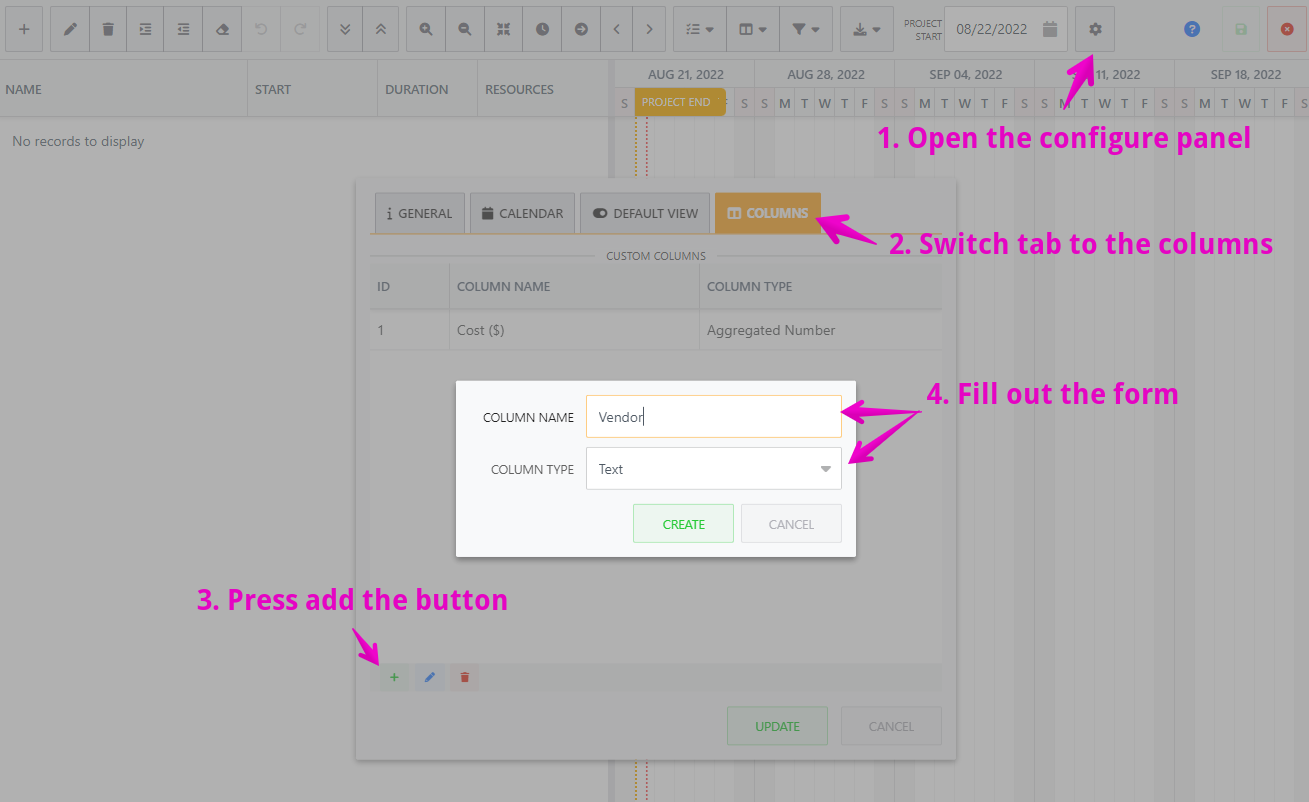

Define custom columns.png


Column types

Types

Description

Text

One line free text.

Number

Any number.

Aggregated Number

In leaf tasks, you can input numbers.

In parent tasks, the column value is the sum of the children’s value of the column.
