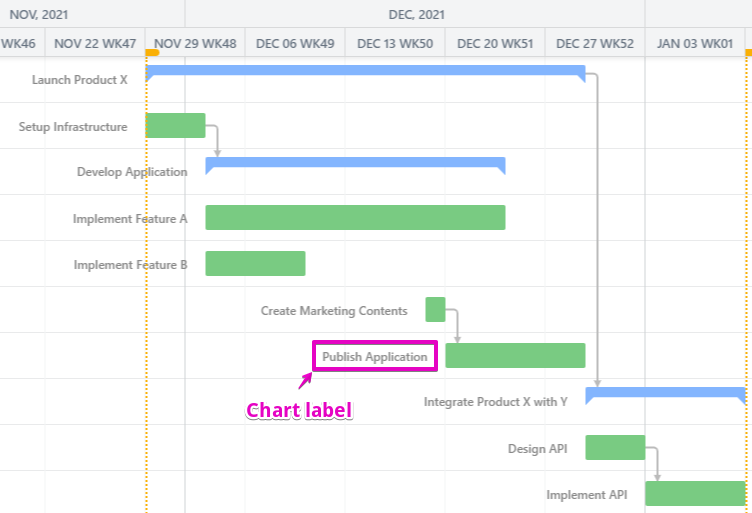

Customize chart label

The chart label is vital for an easy-to-read timeline.
Gantt Chart Planner allows you to hide labels or change the label position.

Change label position

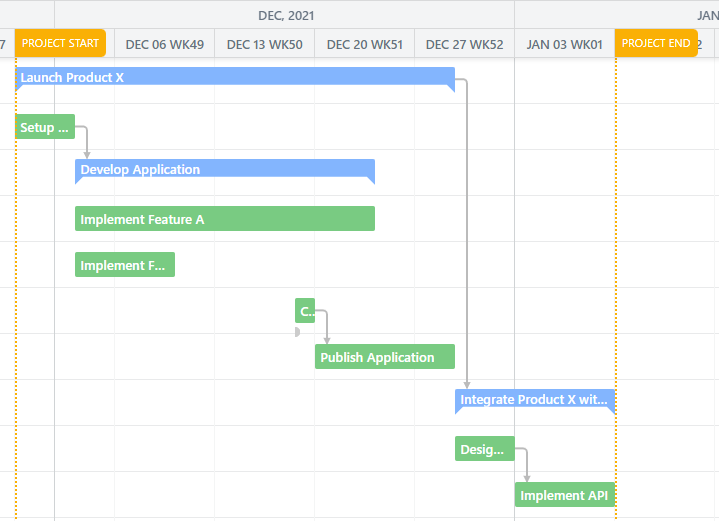

If you’d like to have a plainer chart, you can change the label position to in the chart bar.

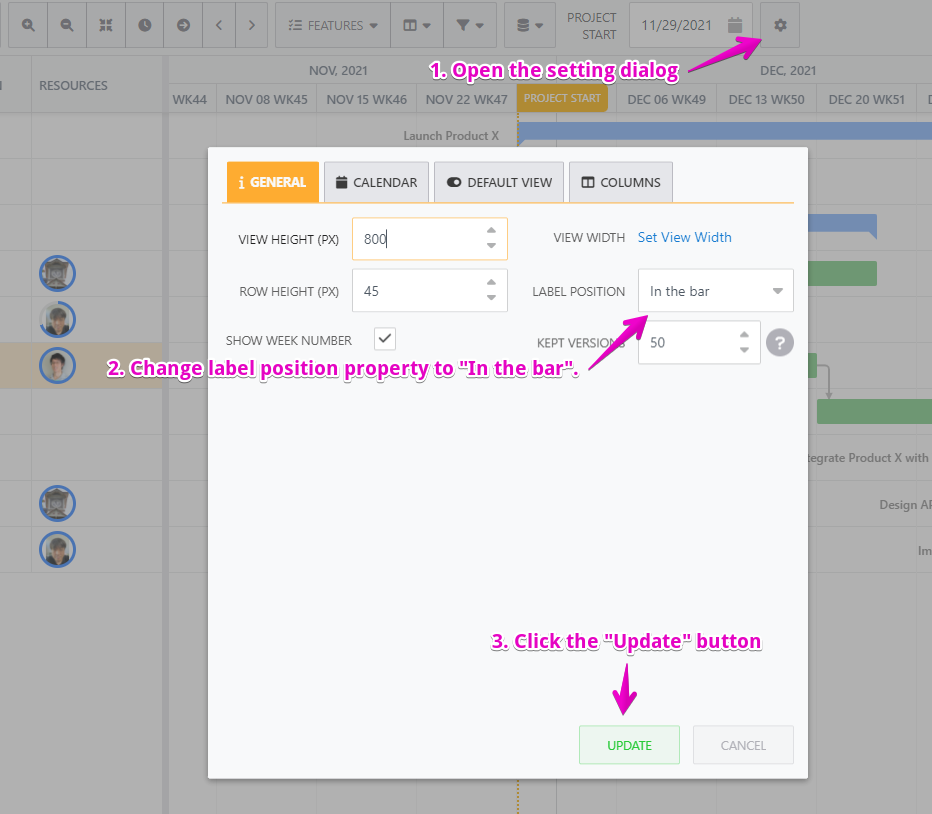

How to change label position

  1. Open the settings dialog.

  2. Change label position property to “In the bar”.

  3. Click the “Update“ button.

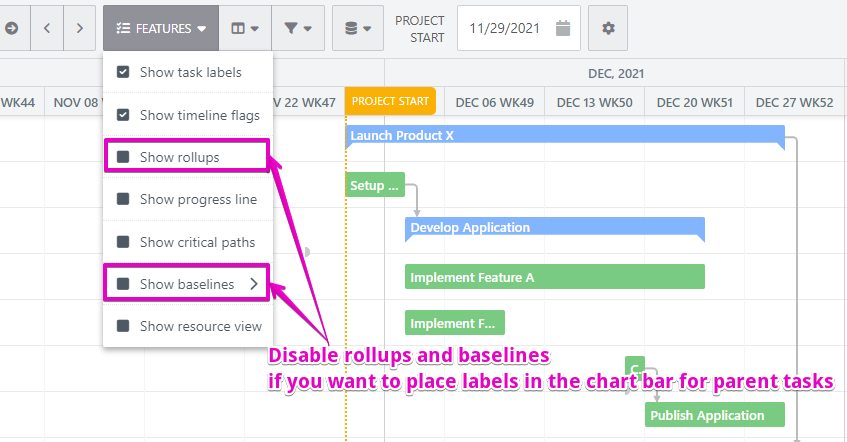

If the rollup feature or the baseline feature is enabled, the label position of the parent tasks remains left of the chart bar.

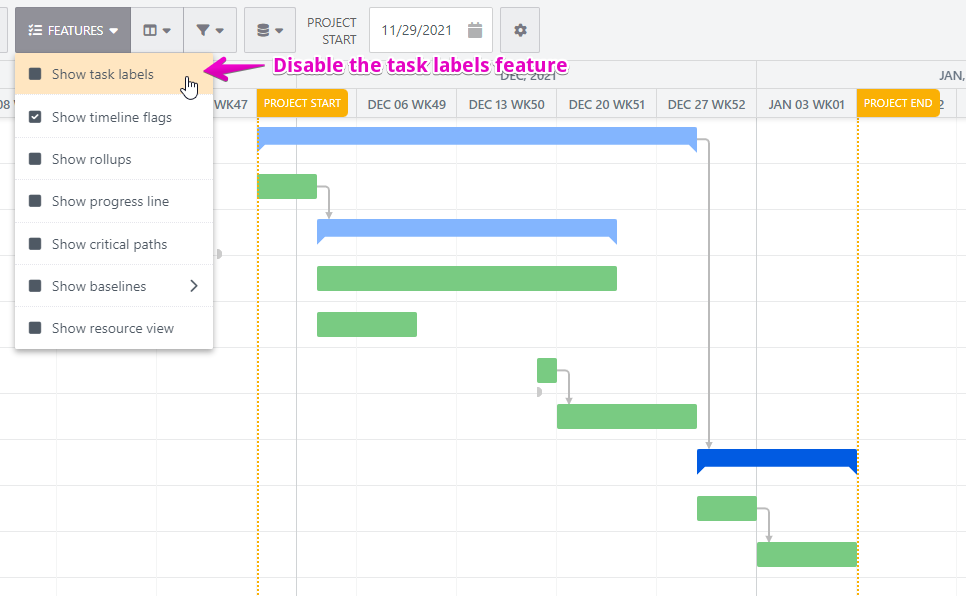

Hide labels

You can hide chart labels by disabling the task labels feature.
